50-300A/5A 32mm Current Transformer (CT) | Class 1.0 Metering
The 50-300A/5A 32mm Class 1.0 Metering Current Transformer (CT) from MVG Power Solutions is designed for electrical current measurement, metering and monitoring applications. This compact encapsulated square-type current transformer provides a practical solution for measuring primary currents in electrical panels, distribution systems and industrial electrical installations.
The CT is available for a primary current range of 50A to 300A with a 5A secondary output. This range provides flexibility for different electrical load and current measurement requirements. The available primary current configurations include 50–60A, 100–200A, 250A and 300A, depending on the required application and configuration.

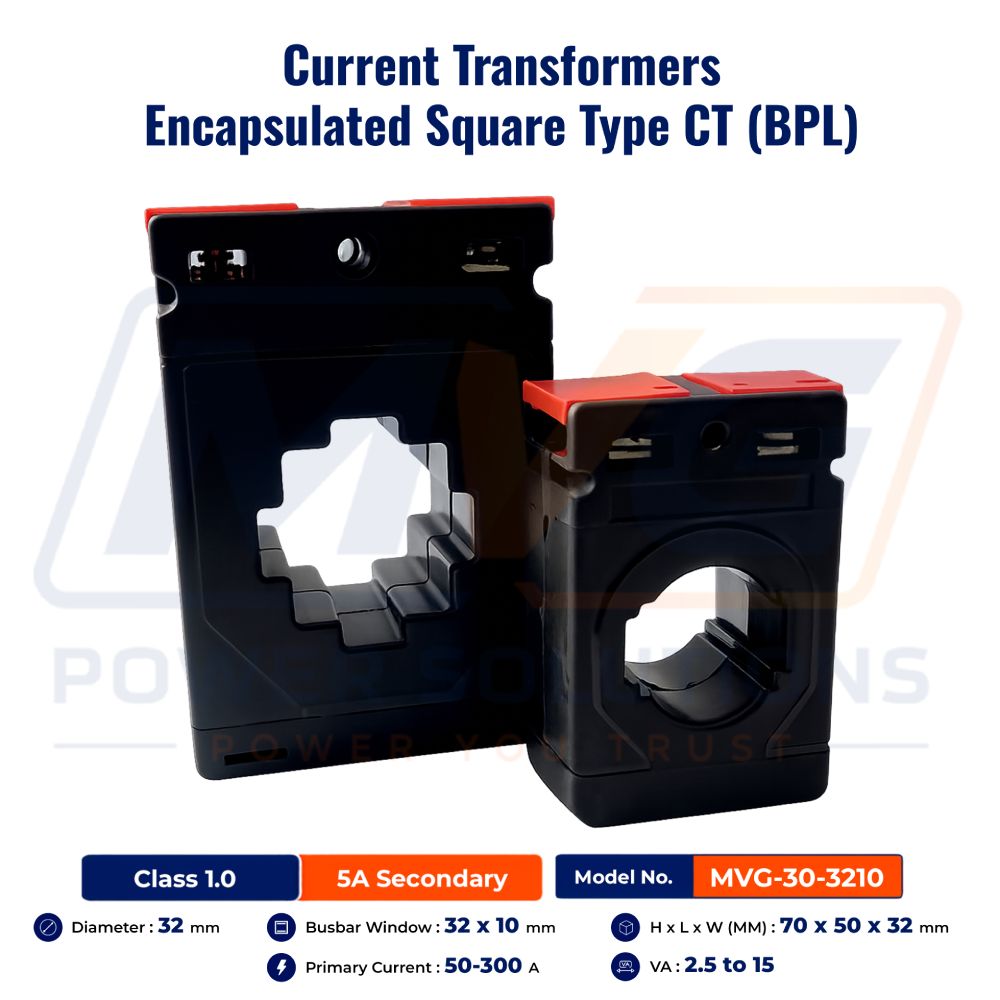

The transformer has a 32 mm inner diameter with a 32 × 10 mm busbar window, providing an opening for installation around compatible conductors or busbars. Its compact dimensions of 70 × 50 × 32 mm make it suitable for electrical panels and applications where installation space needs to be considered.
With Class 1.0 accuracy, this metering current transformer is suitable for general-purpose electrical measurement and monitoring applications when used with compatible measuring equipment.
Key Features
- 50–300A primary current range
- 5A secondary output
- Class 1.0 metering accuracy
- 32 mm inner diameter
- 32 × 10 mm busbar window
- Compact square-type construction
- Encapsulated design
- 2.5–15 VA rating
- Suitable for electrical measurement and monitoring
- Suitable for use with compatible digital meters and panel meters
- Compact dimensions for electrical panel installation
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Current Transformer (CT) |
| Model No. | MVG-30-3210 |
| Primary Current | 50–300A |
| Secondary Current | 5A |
| Accuracy Class | Class 1.0 |
| Inner Diameter | 32 mm |
| Busbar Window | 32 × 10 mm |
| Height | 70 mm |
| Length | 50 mm |
| Width | 32 mm |
| VA Rating | 2.5–15 VA |
| Construction | Encapsulated Square Type |
| Application | Metering & Current Measurement |
Accurate Electrical Current Measurement
A Current Transformer (CT) is used to transform a higher primary current into a lower secondary current that can be safely measured by compatible electrical instruments. This allows meters and monitoring equipment to measure current without being directly connected to the full primary current of the electrical system.
This 50-300A/5A current transformer provides a 5A secondary output for compatible digital meters, panel meters and other electrical measuring instruments designed for a 5A CT input.
The Class 1.0 accuracy makes this CT suitable for general metering and current measurement applications. The appropriate CT ratio should be selected according to the actual electrical load and the requirements of the connected measuring instrument.
32mm Current Transformer Design
The 32 mm inner diameter provides a larger opening than smaller CT designs, making this model suitable for installations requiring additional space for the conductor or busbar.
The 32 × 10 mm busbar window can accommodate compatible busbar installations. Before selecting the product, the actual conductor or busbar dimensions should be checked against the CT opening to ensure proper installation.
The overall size of 70 × 50 × 32 mm provides a compact form factor for electrical panels and equipment where available installation space is limited.
Metering Class 1.0 CT
This product is designed as a Class 1.0 metering current transformer and can be used with compatible electrical meters and measuring instruments.
The 50–300A primary range provides multiple current options for different electrical applications. Depending on the required configuration, primary current options can include 50A, 60A, 100A, 150A, 200A, 250A and 300A, subject to availability and the selected configuration.
The 5A secondary output is commonly used with compatible panel meters, digital meters and electrical measuring systems.
Applications
The 50-300A/5A current transformer can be used for:
- Electrical control panels
- LT electrical panels
- Energy metering systems
- Power monitoring systems
- Electrical current measurement
- Distribution panels
- Industrial electrical systems
- Commercial electrical installations
- Digital panel meters
- Digital ammeters
- Energy monitoring equipment
- Electrical instrumentation
- Current monitoring applications
Suitable for Digital Meters
The 50-300A/5A Current Transformer can be used with compatible digital meters and electrical measuring instruments that require a 5A CT secondary input.
A CT allows the measuring instrument to monitor the primary current through the CT’s secondary output. This can provide a practical solution for current monitoring in electrical panels and power distribution systems.
When selecting a CT for a digital meter, make sure that the primary current ratio, 5A secondary rating, accuracy class, VA/burden requirement and physical dimensions are compatible with the meter and electrical installation.
Why Choose MVG Power Solutions?
MVG Power Solutions supplies Current Transformers (CTs) and Digital Meters for electrical measurement, metering and monitoring applications.
We offer current transformers with different primary current ranges, inner diameters and configurations to suit different electrical panel and industrial requirements.
Whether you require a 32mm Current Transformer, 5A secondary CT, Class 1.0 metering CT or a CT for use with a digital meter, selecting the correct specifications is important for reliable electrical measurement.
For product availability, current ratio options, technical specifications or application requirements, contact MVG Power Solutions.
Installation Note
Current transformers should be selected and installed according to the requirements of the electrical system and the applicable product specifications. Ensure that the primary current, secondary current, accuracy class, VA rating, busbar opening and physical dimensions are suitable for the intended application. Installation should be performed by a qualified electrical professional.
